Audi A4 & S4 Door Blades – A Complete Guide to B6 / B7 Door Blade Options & Installation

Oops! No results, try changing your search!

Audi S4 Door Blades

One interesting design cue in the B6 / B7 (2001.5-2008) Audi A4 and S4 is the door blades – these fins protrude from underneath the door and give the car a more sporty look that is uniquely Audi – you won’t see door blades like this on any other car. There are three styles of door blades you can install on your Audi A4/S4, and they’re all universal between B6 and B7 body styles, as well as A4, S4, and RS4 models in the sedan or avant format (the convertible does have different door blades however). The three styles are:

  1. Audi A4 Door Blades – completely flat and they do not poke out from the side skirt at all.
  2. Audi A4 S-Line or USP (Ultra Sport Package) Door Blades – these look like the S4 door blades (above) only smaller and less aggressive.
  3. Audi S4 Door Blades – the most aggressive of the three, these door blades stick out the furthest from the body and have the sharpest angles.

To install or swap door blades from one style to the other is very easy – all you need is a phillips screw driver, and you can swap out all four in under 20 minutes. There are two screws on the bottom of the door, which is all you need to remove, and then the door blade slides out. Here are a few pictures & step by step instructions on how to install & swap out a door blade (it is the same for all four doors).

Installation Guide

Step 1 – Remove the two screws on the bottom of the inside of the door. One is on the outside edge, one on the inside edge.

How to Install Audi S4 Door Blades

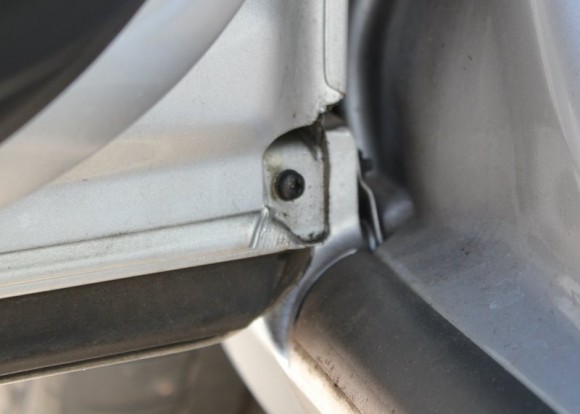

Step 1 – Remove screws on the bottom of the door (outer edge)

And here is the other screw:

How to install Audi S4 Door Blades

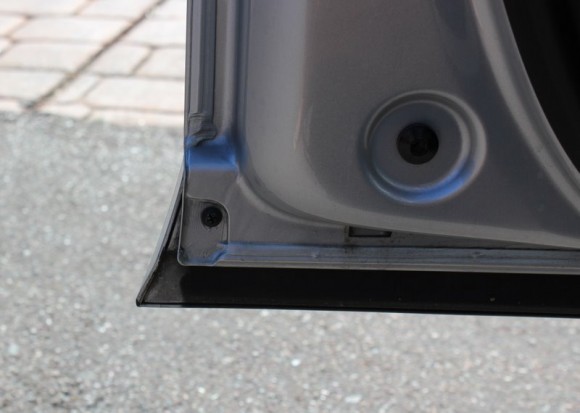

Step 1 – Remove both screws (inner edge pictured)

Step 2 – Slide out the door blade. The door blades slide in and out, so simply pull the door blade outward away from the car when the door is open and it should slide 4-5 inches and the fall off.

How to install Audi S4 Door Blades
Step 2 – Slide off the old door blades

Step 3 – Slide on the new door blade and insert & tighten both screws again (basically, steps 1 & 2 in reverse). You’re done!

Audi S4 Door Blades
Step 4 – step back and admire your new door blades

Installation is easy and there is no doubt the door blades add an awesome visual effect to the car, whether you’re going for a clean & stealthy look with the flat door blades off of a standard A4, or a super aggressive and sporty look with door blades from an Audi A4.

Eurogear (Aftermarket Door Blades) Installation

The Eurogear carbon fiber door blades screw in to the existing holes and come with their own screws, so you can follow the instructions above. The only downside is that you do have to drill one extra hole for a middle support screw, if you’d like to use that. Here are some installed pics thanks to Carlos T on his Imola Yellow S4.

Where to Buy Door blades

The tough part is finding these parts at a good price. Although they’re a simple piece of molded plastic & fiberglass, they’re rather expensive, especially when you factor in painting costs. Here are my recommendations on where to buy Audi S4 Door blades

  1. Ebay – you can buy OEM and aftermarket S4 blades on eBay. I recommend going the OEM route, but if you have a good body shop the aftermarket ones could be a good route too. Please note this is an affiliate link and I may earn a commission for anything you buy after clicking this link:
  1. ECS Tuning – they have brand new OEM Audi S4 door blades in stock at around $500, and they’re currently offered with free shipping: http://www.ecstuning.com/Audi-B7_A4-FWD-2.0T/Exterior/Body/Mouldings/ES3243/
  2. Audizine Classifieds – you can often find a set of used Audi door blades here, and depending on price and paint finish, you can sometimes get a good deal. You need to act quick though, as these are in high demand and usually sell very quickly: http://www.audizine.com/classifieds/showcat.php?cat=35 – be sure to browse both the B6 and B7 classifieds, as the door blades are universal and fit either body style
  3. Junk Yards – if you get really lucky, you can find a set on a wrecked Audi in a junk yard. Since they’re so easy to remove, you can pick-n-pull the part yourself and usually get a very good deal on it assuming the junk yard doesn’t know what they’re actually worth. The hard part is finding wrecked Audi A4/S4s, especially if you’re looking for one in the same color.
  4. Eurogear – these are pretty cool – they’re not OEM door blades, but instead they are custom made Carbon Fiber replicas. If you have a lot of carbon fiber on your exterior, this would be a great way to tie it all together, and they run the same price as the OEM door blades from ECS Tuning at around $495: http://www.eurogearusa.com/door_blades/products/b6_audi_s4_carbon_fiber_door_blades.html
  5. Audi Dealerships – talk to your local Audi Dealership and see what kind of price they can get you…chances are they can’t beat ECS Tuning’s price, but its worth a shot.

Here are the part numbers for OEM Audi S4 door blades:

  • 8E0-853-959-A-7DL
  • 8E0-853-960-A-7DL
  • 8E0-853-969-A-7DL
  • 8E0-853-970-A-7DL

And that’s my guide to Audi A4/S4 lower door blades. This subtle part can really transform the side view of your car, and they’re easy to install – the only downside is their price. If you’re patient, keep your eyes peeled for some used door blades, otherwise, be prepared to spend around $500 for a new set, and probably another $250 to paint them. Some people do leave them unpainted in flat black, which can look really cool & aggressive on some cars, but that’s a matter of taste & preference.

Nick Roshon

Nick has been an Audi owner and fanatic for the last 10 years, and started Nick's Car Blog in 2009 to share DIYs and pictures of his A4. Currently he drives a 2012 Audi TT-RS, and has previously owned a B7 S4, B7 A4, and an 82 Audi Coupe (GT) LeMons race car. In his day job, Nick is a digital marketer and lives in San Diego, CA, USA.

23 Comments

  1. hello, i see you know everything about audi a4, can you tell me please how do i remove my standard door blades from an audi a4 b6 8e from 2002, i dont know if they are stick on or they are sliding out like the USP or S4 ones? Thanks

  2. The standard door blades on a b6 are exactly the same as described in this post – remove the two screws at the bottom of the inside of the door and then they’ll slide out. Hope that helps!

  3. Actually, ECS Tuning’s prices are usually pretty awful. A little bit of google and you can destroy their pricing.

  4. They’re hit or miss. They had a sale on Door Blades that was pretty good for a while, not sure anymore. Always Google before buying 🙂

  5. I just bought the carbon fiber set from EuroGear. The instructions mention adhesive tape besides the screws, but there is no tape. Do stock ones have tape as well? Also, what about the rubber weather strip? Euro’s don’t have any, though looks made not to need it. Any input on these before I install?

  6. Neither my A4 nor S4 used tape, but maybe they recommend that since the CF ones are much lighter and need some extra reinforcement? Mine did have a weather strip, so maybe the double sided tape is a workaround. You could always install without and then drive at highway speeds and have someone watch your blades and make sure they’re not flapping around or loose, and if they are go back and add some 3M double sided mounting tape to help keep them more secure…

  7. I would add one thing concerning maintenance on door blades. They should be removed once a year at least. Grit and all kinds of moisture trapping particles accumulate between the blade and the lower door. I hadn’t attended to mine in quite some time and needed to eliminate, repair and repaint a couple of area’s that were corroding. The little mushroom shaped nubs tend to lose their paint covering so those are also prone to corrosion. It’s an easy preventative maintenance of cleaning and waxing when all is good. But when corrosion is present it becomes a weekend project.. Nice Blog Nick

  8. On Matthew’s carbon blades, I would recommend seeing if retrofitting the rubber weather stripping is possible, if they are loose then the vibration and movement will affect the paint and wear cracks into the paint which in time will allow moisture to seep thru to the metal skin. I would not trust double sided tape a sit may prove to be very difficult to release over time when you need to clean in between the blades and lower door panels.

  9. Just ordered a set from Eurogear to replace worn blades that are bowing too much. Felt better deal and more unique to tie in with rear carbonfiber spoiler. Have you seen any of the Eurogear pieces installed yourself? Do they use the factory screws to mount in place? Seemed like they were reputable since the were Sema recognized. Anyways looking forward to them on my 05.5 Imola Yellow S4 sedan and to change it up a bit.

  10. A neighbor of mine has the Eurogear blades, they seem to fit well – and they’ve been on the car 4+ years and seem to be holding up well. I kind of recall them not using the factory screws though, but I’m not 100% on it…but quality seems good. I do love me some Imola Yellow, post a pic after it’s installed to my FB page!

  11. Hey Nick! I have rusting on my 08 RS4 front passenger side. Can you help me with the part number?

  12. Sent you an e-mail with a few pics of my 05.5 Imola Yellow sedan with the Carbon-fiber door blades installed I recently ordered. I don’t use Facebook to post there. Figured you could post them where you like & also cause there are too few pictures floating around with these installed to give people an idea. These are the Eurogear ones I messaged last about.

  13. Hey man I’m about to order some off ebay but they are for an avant, are you positive they will fit my sedan?

  14. Great post, Nick. Still so hard to find a reasonably priced option, especially if you’re looking to find a single piece and not a set of 4.
