I recently picked up a FISCON Bluetooth Retrofit kit and wanted to share the installation instructions and do a quick mini review of the system – it’s a great way to retrofit bluetooth to your Audi that can be easily installed at home. There are now a ton of cheaper, easier to install versions of this kit, so check out eBay for your best bet:
|View all items...||(Powered by: WP eBay Ads)|
These instructions are specific to Kufatec/FISCON, and they provide instructions on how to install it (download it here). While the instructions are okay, I’m going to give much better information and pictures to walk you through this process so that even the most novice modders can handle this. If you picked up a different kit, fear not, most of the installation is very similar and the pictures below should help you understand where everything is and how to access the various components you’ll need to install and setup the system the first time.

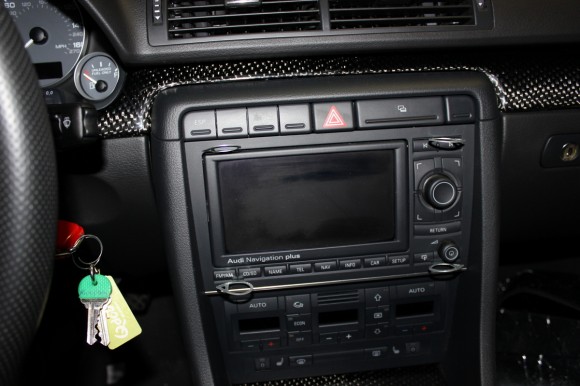

First, start by removing the radio using a set of radio removal keys. You insert the four keys and the radio will simply pull out – you may want to put a towel over your shifter or beneath the head unit so it doesn’t scratch anything.

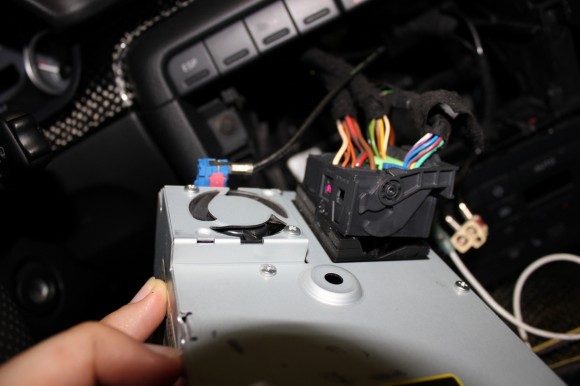

Next, remove the wiring harness from the back of the radio. There is an arm that you have to unfasten so that the harness unlocks from the back of the radio, so be sure to unclip this before tugging at the wire – it should slip off very easily so no need to yank at it.

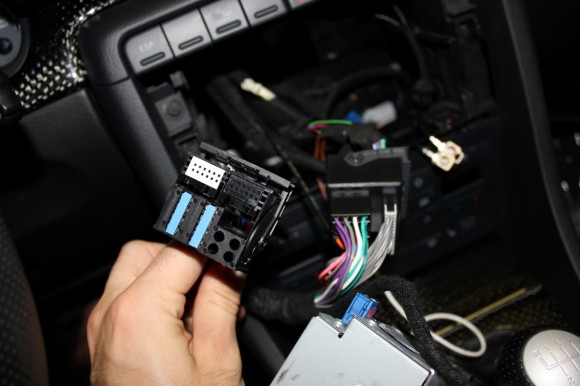

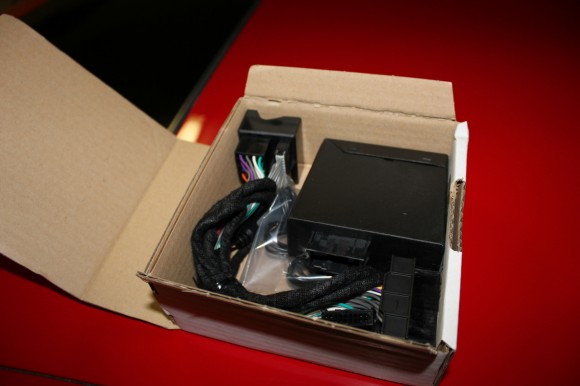

Unpackage the FISCON kit and take out the wiring adapter for the back of the radio. The plugs look nearly identical and it basically goes between the factory wiring and the back of the harness to give you the wiring you need without needing any splicing or wiring necessary from you.
Like I said before, the factory wiring plugs in to the female end of the FISCON harness, and then then the male end of the FISCON harness plugs into the back of your radio. All plugs of the harness have similar locking arms, so loosen the arm, plug the harness in, then clamp the arm down to lock it in place.
In the picture above, you can see the swinging arm lock – press it all the way down and it should “click” into place, holding the wiring harness securely in place.
Next, you’ll want to remove the trim piece below the steering wheel so you can run the wires properly. If you don’t know how to remove this panel, consult the step “Step 4 – Headlight Switch Trim Removal” in this post – it’s just three bolts and the panel drops.

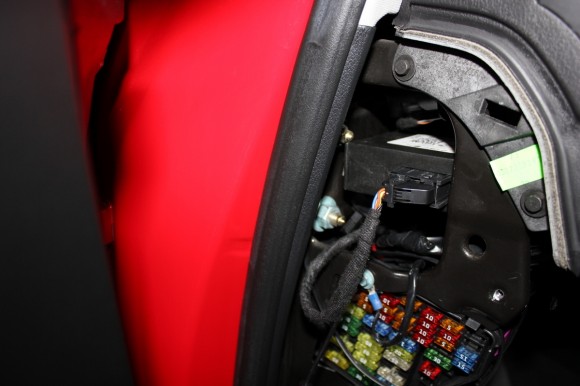

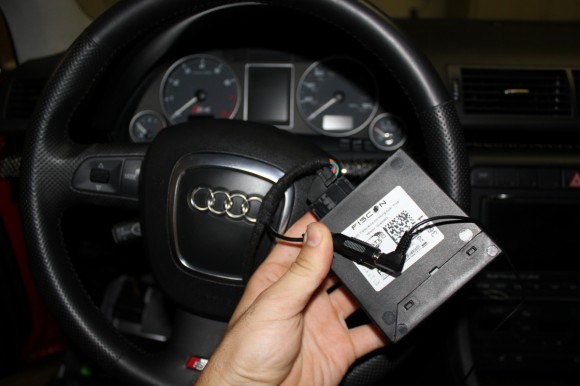

The FISCON wiring harness from the back of the radio should have a longer cable that you’ll want to run underneath the steering column and then out the fuse panel, like below. The long end of this wire plugs into a square box which is essentially the brain of the Bluetooth unit. I mounted the box/brain above the fuse box for easy access in case anything ever goes wrong. The wiring also has a headphone jack coming out of it, which is what you’ll use to rig up the microphone

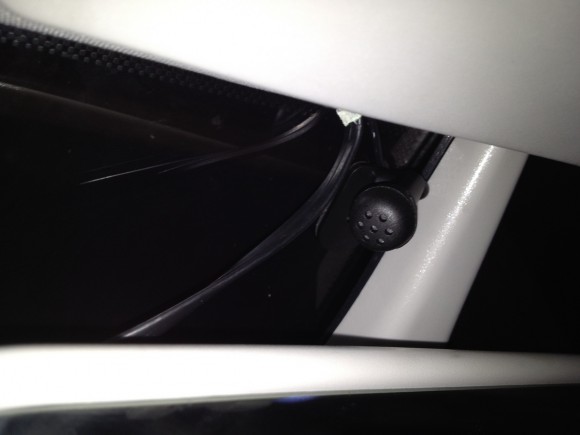

Now that the wiring has been ran for the bluetooth unit, and you’ve mounted the box/brain of the unit above the fuse box, you just need to run the microphone wiring. The FISCON kit comes with some clips & adhesive to mount the microphone. I started by mounting the microphone first, then tucking the extra wiring inside of the headliner and A pillar all the way down to the fuse box. There is plenty of extra wiring with this kit, which is nice if you have somewhere else in mind you want to wire the microphone for.
You should be able to tuck the microphone wiring in using a flathead screwdriver, much like you would for hardwiring a radar detector. Tuck in any extra wire where the FISCON unit is above the fuse panel, and then reinstall the dash panel, fuse cover and push the radio back in. Time for some light coding!
- Connect your VAG-COM cable and go to Instruments – Radio (56)
- Go to coding and change the fifth number to be a 6 – mine reads “0309637”
- Save the settings
- Next go back to Instruments and go to 17 – Instrument Cluster
- Go to Channels and select Channel 62, then add +02
- Lastly, go to Instruments then select Steering Wheel (16) to program the multi-function steering wheel (assuming you have one, if not, disregard)
- Change the coding so the second digit is a 3 – such as 03xxx
You’re done coding…now restart the RNS-E. To do this, hold down the power button for 45 seconds with the car on. Wait 45 seconds, and then hold the power button for another 45 seconds. It should cycle on/off while you’re holding down the button.

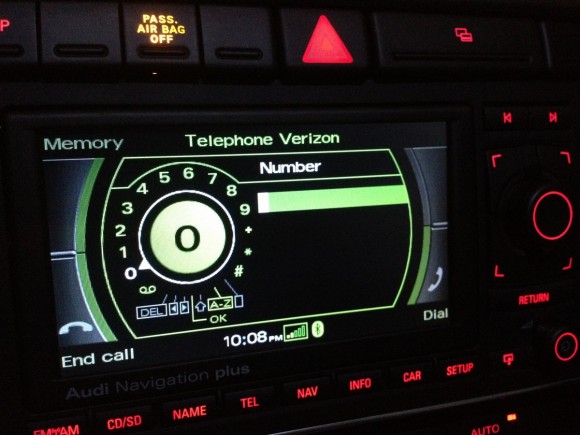

Lastly, connect the bluetooth from your car to your phone. In the iPhone, go to Settings – General – Bluetooth and you’ll see “KUFATEC FISCON” as an available option (if you don’t, recheck your installation & connections). When you connect to it, enter the password “1234” and you will be connected. You should now see the phone in your RNS-E and use it just like you would the OEM bluetooth feature.
All done! Test and enjoy…
